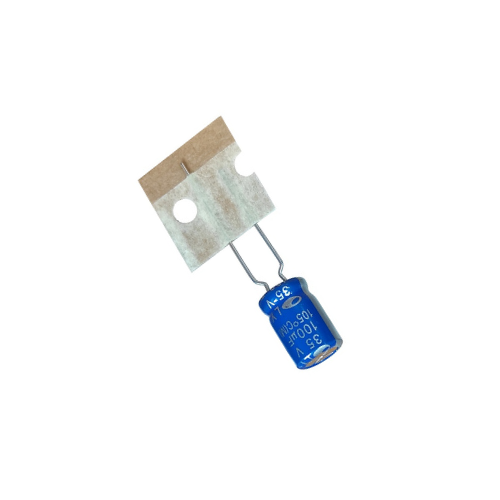

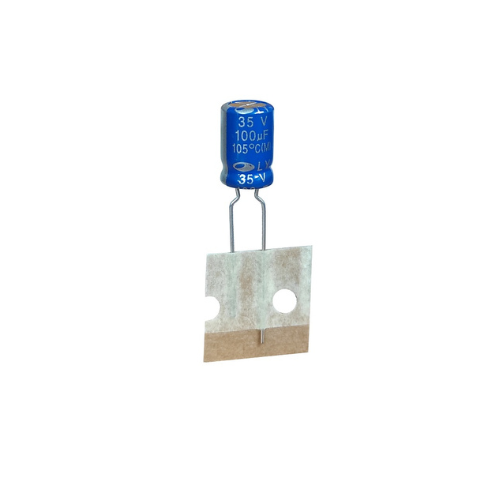

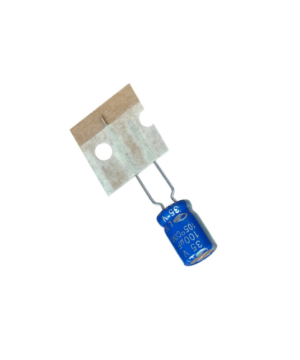

100uF 35V Electrolytic Capacitor 105C 8×12 mm

A capacitor (originally known as a condenser) is a passive two-terminal electrical component used to store energy electrostatically in an electric field. Samwha miniature aluminium electrolytic capacitors offer high reliability and long life (2000 hrs) with high ripple current at high frequency and excellent smoothing ability. These aluminium electrolytic capacitors can be used for many products.

Feature/Specs:

• Part No: LY1V107M0812M
• Manufacturer: Samwha Electric Co
• Capacitor Type: Radial Aluminium Electrolytic
• Mounting Type: Through Hole
• Value: 100uF
• Voltage Rating: 35V
• Tolerance: ±20%
• Max Temperature: -25~+105°C
• Lifetime @Tamax: 2000 h

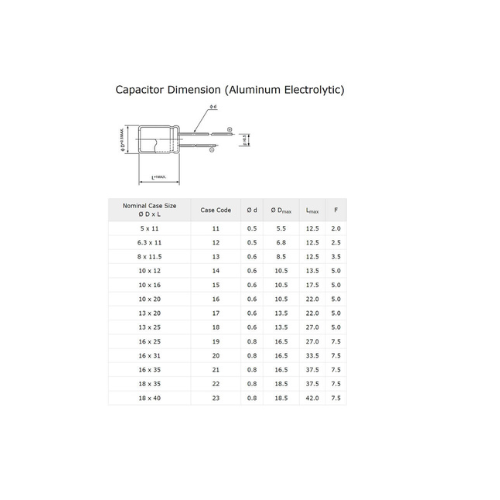

• Case Code: 12
• Lead Spacing pitch: 3.5 mm ( | 5mm | )
• capacitor diameter: 8 mm
