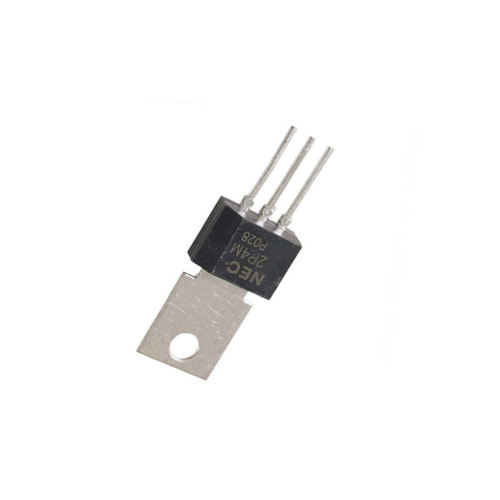

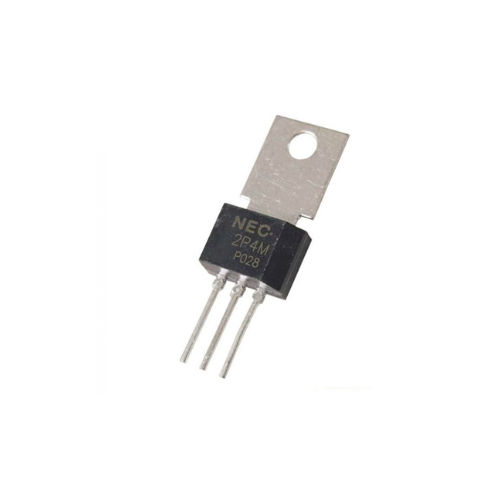

2P4M – 400V – 2A SCR – Thyristor

The 2P4M to 2P6M are P-gate all diffused plastic molded type SCR granted average on-state current 2 Amps (Tc 77 with rated voltages up to 600 volts.

Features:-

• Easy installation by its miniature size and thin electrode leads

• Less holding Current distribution provides free application design

• Low cost because Of mass-production.

Applications:-

• Electric blanket, Electronic jar, Various temperature con

•  Electric sewing machine, Speed control Of miniature type motor

• Light display equipment, Lamp dimmer such as a display for entertainment

•  Automatic gas lighter, Battery charger

•  Solid State static switches etc.

Specifications:-

Symbol	Parameter	Ratings	Units
VRSM	Non-Repetitive Peak Reverse Voltage	500	V
VDSM	Non-Repetitive Peak Off-state Voltage	500	V
VRRM	Repetitive Peak Reverse Voltage	400	V
VDRM	Repetitive Peak Off-state Voltage	400	V
IT(AV)	On-state Current	2(Tc=77 °C Single Phase (1/2 wave)	A
ITSM	Surge Non-Repetitive On-state Current	20	A
PGM	Peak Gate Power Dissipation	0.5 (f ≥ 50 Hz, Duty≤ 10%)	W
PG(IAV)	Average Gate Power Dissipation	0.1	W
IFGM	Peak Gate Forward Current	0.2 (f ≥ 50 Hz, Duty≤ 10%)	A
VRGM	Peak Gate Reverse Voltage	6	V
Tj	Junction Temperature	-40 to 125	°C
Tstg	Storage Temperature	-50 to 150	°C
	Weight	1.4	g
