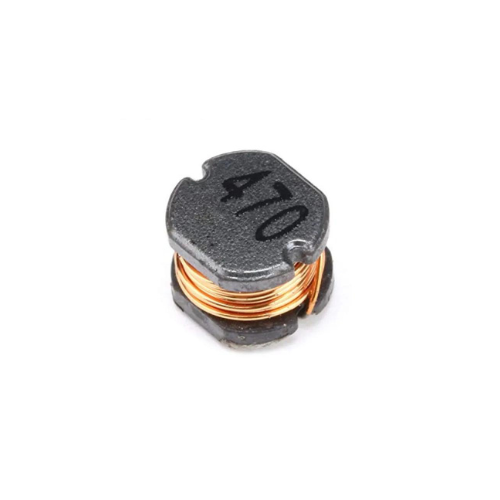

47uH (470) SMD 5mm Inductor

A CD54 47uH Surface Mount Power Inductor (47 microH) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads for a surface mounting. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others.

Applications: Useful in Mobile phone, PDA, MP3, DSC/DVC, portable DVD etc as DC-DC Converter inductors.

Features:-

• Ferrite drum core construction.
• Magnetically unshielded.
• Moisture Sensitivity Level: 1
• Halogen Free available.
• Operating temperature range: -40°C+100°C
  (including coils self temperature rise)
• Storage temperature range: -40°C+100°C
• Solder reflow temperature: 260 peak.
