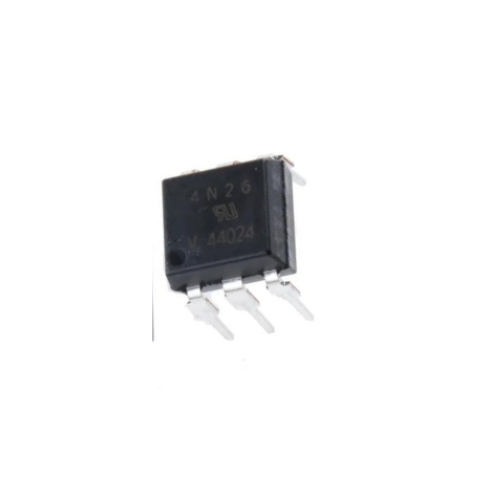

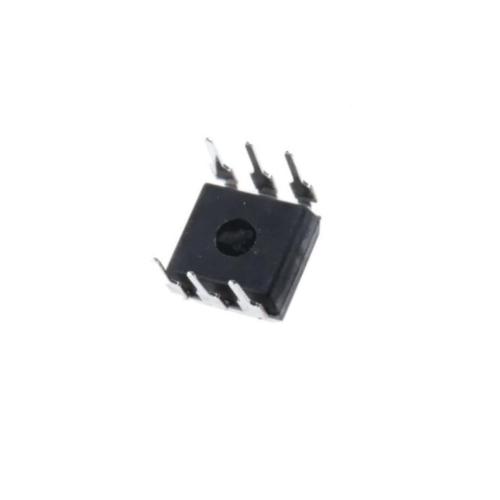

4N26 DC Input Transistor Output Optocoupler Through Hole 6-Pin PDIP

These couplers are Underwriters Laboratories (UL) listed to comply with a 5300 V RMS Isolation Test Voltage. This isolation performance is accomplished through Infineon double molding isolation manufacturing process. Compliance to VDE 0884 partial discharge isola-

tion specification is available for these families by ordering option 1.Phototransistor gain stability, in the presence of high isolation voltages, is insured by incorporating a TRansparent lOn Shield (TRIOS) ® on the phototransistor substrate. These isolation processes and the Infineon IS09001 Quality program results in the highest isolation performance available for a commercial plastic phototransistor optocoupler.

• Interfaces with Common Logic Families.

• Input-output Coupling Capacitance < 0.5 pF.

• Industry Standard Dual-in-line 6-pin Package.

• Field Effect Stable by TRIOS ® • 5300 V RMS Isolation Test Voltage.

• Underwriters Laboratory File #E52744.

• VDE #0884 Approval Available with Option 1.

• AC Mains Detection.

• Reed Relay Driving.

• Switch Mode Power Supply Feedback.

• Telephone Ring Detection.

• Logic Ground Isolation.

• Logic Coupling with High Frequency Noise Rejection.
