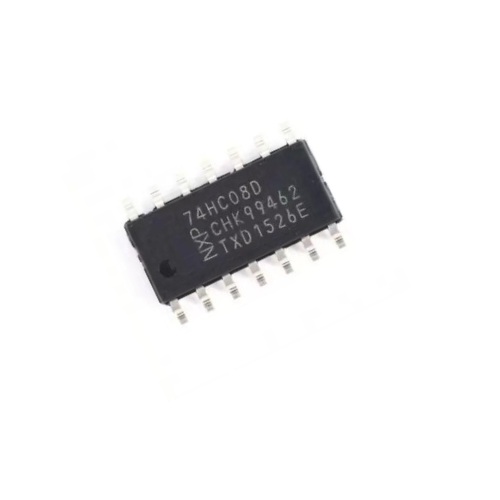

74HC08 Quad 2-Input AND Gate IC SOIC-14 Package

74HC08 is Quad 2-Input AND Gate 14 Pin SMD IC. The 74HC08 provides provides 4 independent 2-input AND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. It utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. The HC08 has buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features:

• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range: –55°C to +125°C
• Supports fanout up to 10 LSTTL loads
• Significant power reduction compared to LSTTL logic ICs

Features/Specs:

• Series: CD74HC08
• Function: Quad 2-Input HS
• Logic Type: 2-Input AND
• Product Category: Logic Gates
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: HC
• Output Type: CMOS
• Input Type: CMOS
• Number of Gates: 4 Gate
• Number of Bits: 4 bit
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: -5.2 mA
• Low Level Output Current: 5.2 mA
• Propagation Delay Time: 23 ns
• Operating Supply Voltage: 3 ~ 5V
• Operating Supply Current: 20 uA
• Output Current: 20 mA
• Operating Temperature Range: -55 ~ +125°C
• Mounting Style: SMD/SMT
• Package/Case: SOIC-14 Package
• Weight: 1 gm

Applications:

• Combining power good signals
• Enable digital signals
