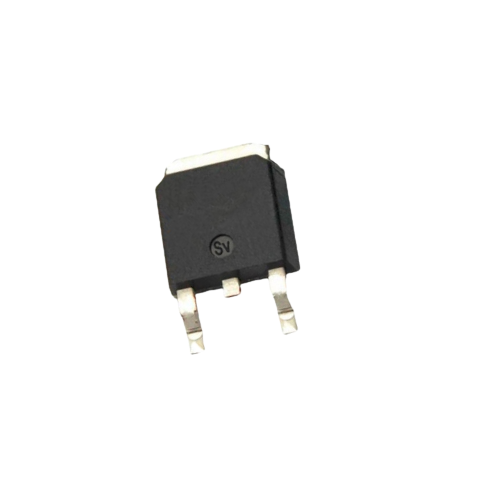

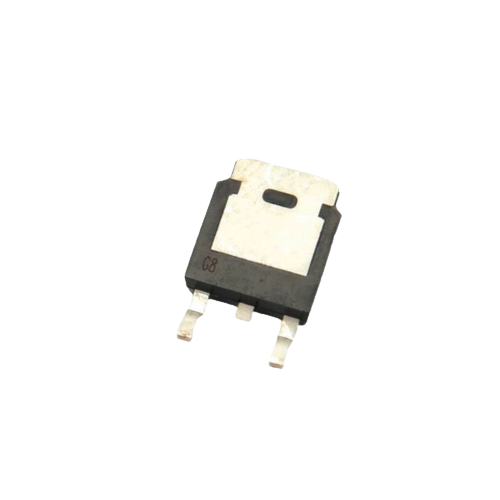

79M12 – 7912 – (SMD TO-252/DPAK Package) – 12V Negative Voltage Regulator IC

The 78M12 is a fixed output negative voltage regulators are intended as complements to the popular 78M12  series devices. Available in fixed output voltage options of −5.0 V, −8.0 V, −12 V and −15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heat sinking they can deliver output currents in excess of 0.5 A.



Features:-

●  Output Voltage: -5 & -12V

● Output current up to 1A

● No external components required

● Internal thermal overload protection

● Internal short-circuit current limiting

● Output transistor safe-area compensation

● Output voltage offered in 4% tolerance

Specification:-

Symbol	Parameter	Rating	Unit
VI	Input Voltage	-35	V
PD	Power Dissipation	65	°C/W
TJ	Operating Temperature Range	−40 to +150	°C
TSTG	Storage Temperature Range	−65 to +150	°C
