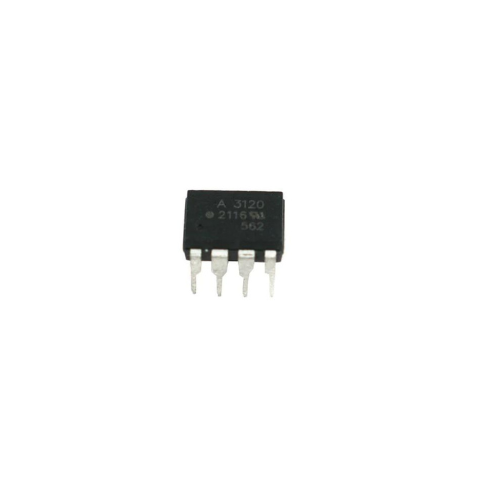

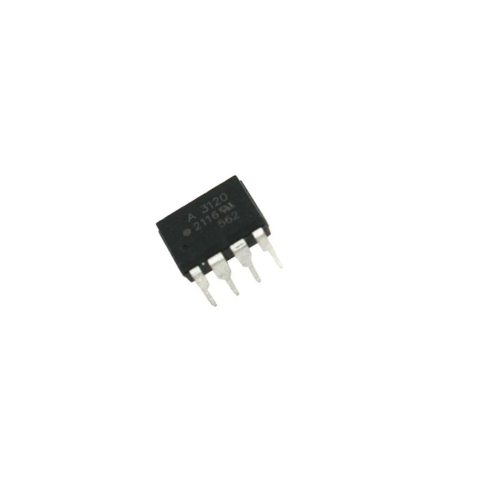

A3120 is an IGBT gate drive optocoupler with 2.5-ampere output. It has a GaASP LED on board that is optically coupled to an integrated circuit with a power output stage. These optocouplers are perfect for driving high-power IGBTs and MOSFETs in inverter motor control applications. The output stage’s high operating voltage range supplies the drive voltages required by gate-controlled devices. These optocouplers’ voltage and current outputs make them excellent for directly driving IGBTs with ratings of up to 1200 V/100 A. The A3120 Gate Driver can be utilized to drive a discrete power stage that drives the IGBT gate for IGBTs with greater ratings.
Features:
- Under Voltage Lock-Out Protection (UVLO) with hysteresis
- Wide operating VCC range: 15 to 30 Volts
- 0.5 V maximum low-level output voltage (VOL) Eliminates the need for a negative gate drive.
Applications:
- IGBT/MOSFET gate drive
- AC/Brushless DC motor drives
- Industrial inverters
- Switch-mode power supplies
A3120 Pinout
SPECIFICATIONS:
| Maximum peak output current | 2.5 A |
| Minimum peak output current | 2.0 A |
| Minimum Common Mode Rejection (CMR) at VCM=1500 V | 25 kV/μs |
| Maximum switching speed | 500 ns |
| Industrial temperature range | –40 °C to 100 °C |
| Icc (maximum supply current) | 5 mA |
| Package | DIP |
