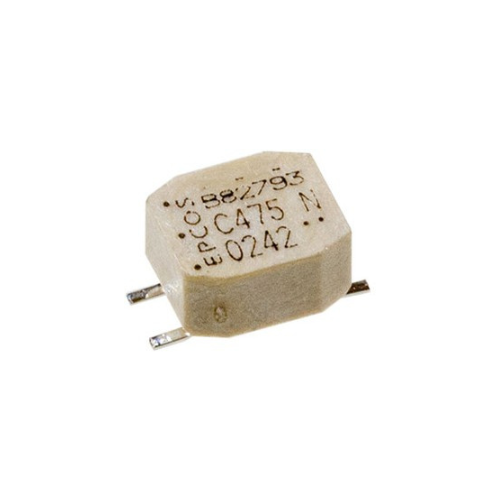

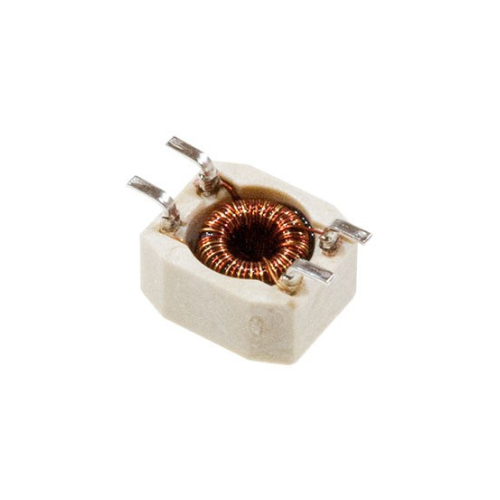

B82793C475N265, B82793C0475N265, choke 2×4.7uH 0.4A

Construction:-
■ Current-compensated double choke.
■ Ferrite core.
■ LCP case (UL 94 V-0), silicone potting.
■ Bifilar winding (B82793C0).
■ Sector winding (B82793S0).

Features:-
■ High-rated currents, reduced components height.
■ Qualified to AEC-Q200 (L d4.7 mH).
■ Suitable for reflow soldering.
■ RoHS-compatible.

Function:-
■ B82793C0:
Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly.
■ B82793S0:
Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced.

Applications:-
■ Automotive applications, e.g. CAN bus.
■ Industrial applications.
■ Types with LR !4. 7 mH only for telecom applications.

Terminals:-
■ Base material CuSn6.
■ Layer composition Ni, Sn.
■ Hot-dipped.
