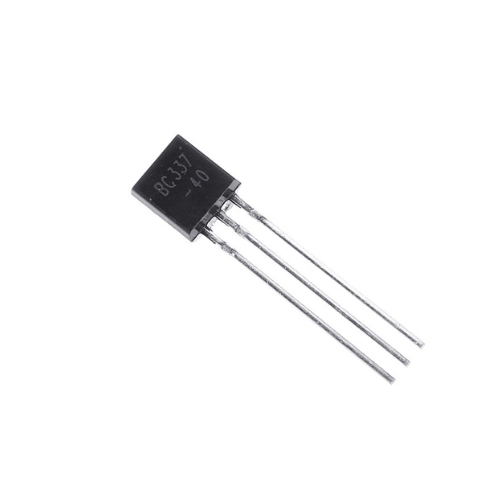

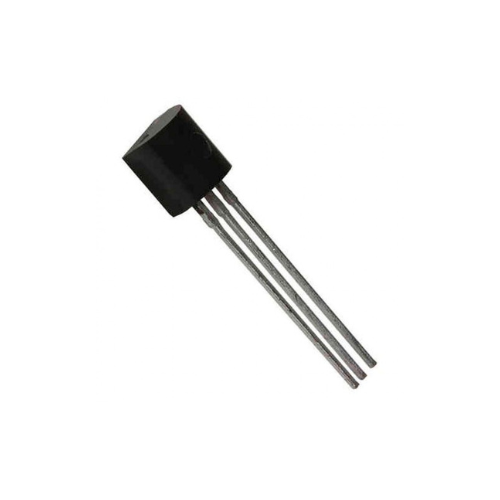

BC337 NPN General Purpose Amplifier Transistor

BC337 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability

Detailed Specifications:-

Transistor Polarity	NPN
Collector-Base Voltage (VCBO)	50VDC
Collector-Emitter Voltage (VCEO)	45VDC
Emitter-Base Voltage (VEBO)	5VDC
Continuous Collector Current (IC)	800mA
Output Capacitance (Cobo)	15pF
Transition Frequency (fT)	210MHz
DC Current Gain (hFE)	100-630
Operating Temperature Range	-55 – 150°C
Power Dissipation (PD)	1.5W
