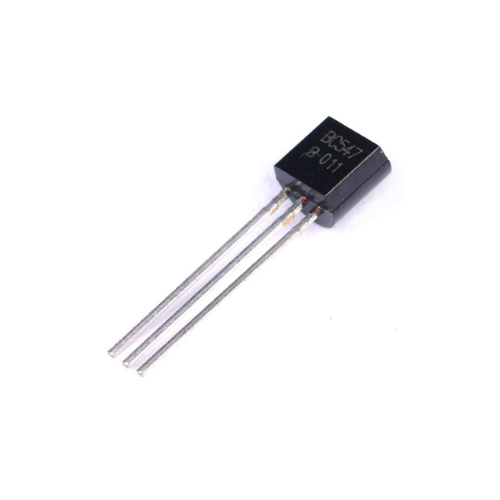

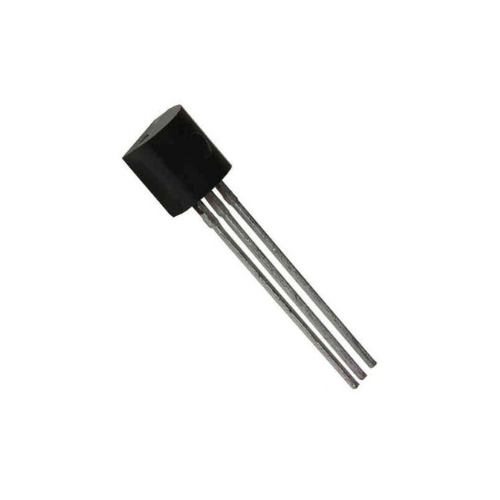

BC547 NPN General Purpose Transistor 45V 100mA TO-92 Package

BC547 is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor’s terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.

Features:-

• Advanced process technology

• Low error voltage

• Fast switching speed

• Full-voltage operation

• High power and current handling capability

Detailed Specifications:-

Transistor Polarity	NPN
Collector-Base Voltage (VCBO)	50VDC
Collector-Emitter Voltage (VCEO)	45VDC
Emitter-Base Voltage (VEBO)	6VDC
Continuous Collector Current (IC)	100mA
Output Capacitance (Cobo)	4.5pF
Transition Frequency (fT)	300MHz
DC Current Gain (hFE)	110-800
Operating Temperature Range	-55 – 150°C
Power Dissipation (PD)	625mW
