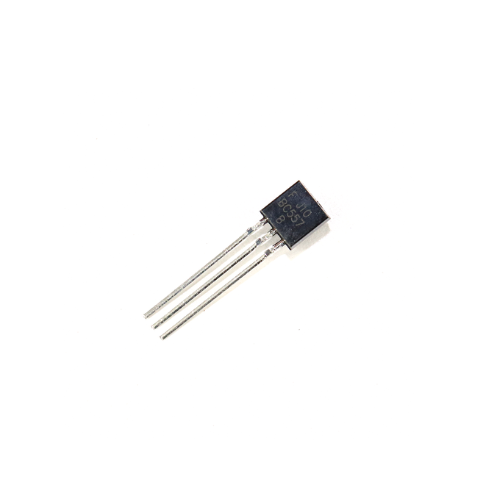

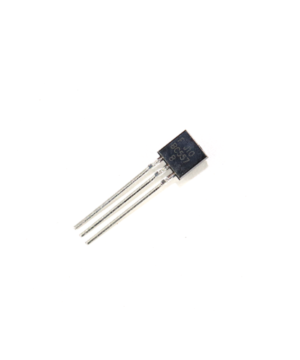

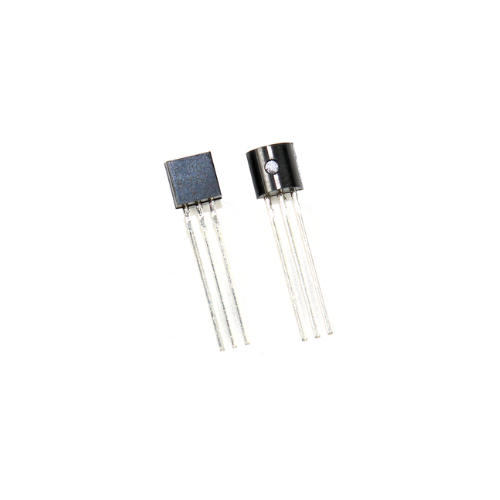

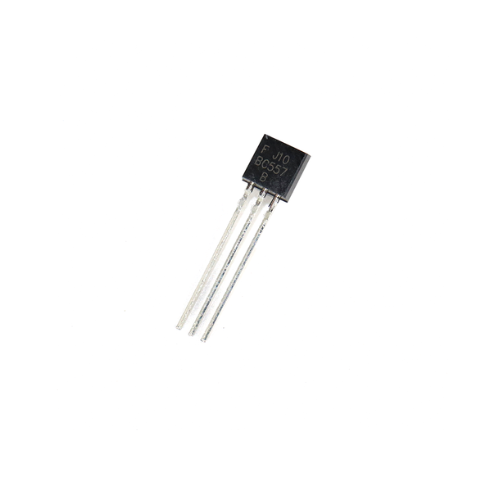

BC557 PNP Transistor

Name: BC557 PNP Transistor
SKU: 953
Price: 1.50 INR
Availability: InStock

₹1.50

BC557 is a PNP Transistor. It has a gain value of 110 and a collector current of 100mA.

14 in stock

PNP transistor in a TO-92 plastic package used for general purpose switching and amplification.

Brand: Generic

Mount: Through Hole

Number of Pins: 3

Collector Emitter Breakdown Voltage: 45 V

Collector Base Voltage (VCBO): 50 V

Collector Emitter Voltage (VCEO): 45V

Element Configuration: Single

Gain Bandwidth Product: 100 MHz

Current Rating: -100 mA

Emitter Base Voltage (VEBO): 5 V

Case/Package: TO-92

Max Collector Current: 100 mA

Min Operating Temperature: -65 C

Max Power Dissipation: 500 mW

Max Operating Temperature: 150 C

Polarity: PNP

Voltage Rating (DC): -45 V
