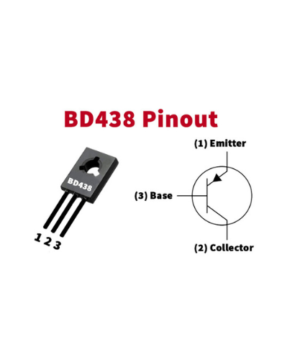

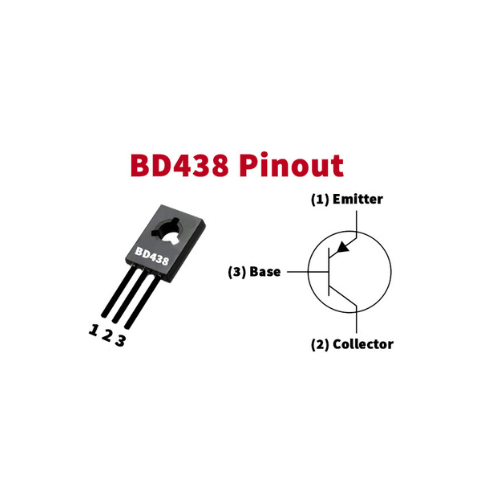

BD438 PNP Power Transistor

The BD433, BD435, and BD437 are silicon epitaxial-base NPN power transistors in the Jedec SOT-32 plastic package, intended for use in medium power linear and switching applications.
The BD433 is especially suitable for use in car-radio output stages. The complementary PNP types are BD434, BD436, and BD438 respectively.

• Type: PNP.
• Collector-Emitter Voltage, max: -45 V.
• Collector-Base Voltage, max: -45 V.
• Emitter-Base Voltage, max: -5 V.
• Collector Current − Continuous, max: -4 A.
• Collector Dissipation: 36 W.
• DC Current Gain (h_fe): 30 to 130.
• Transition Frequency, min: 3 MHz.
• Operating and Storage Junction Temperature Range: -65 to +150 °C.

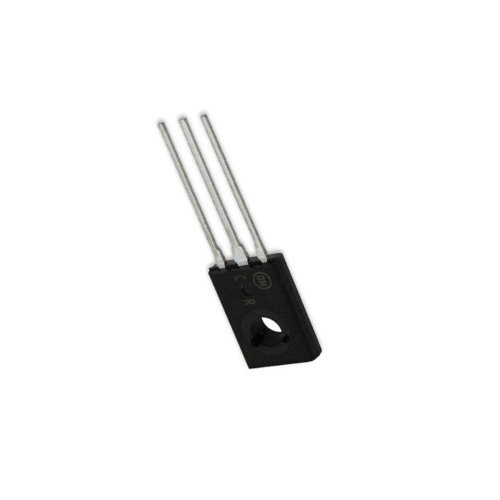

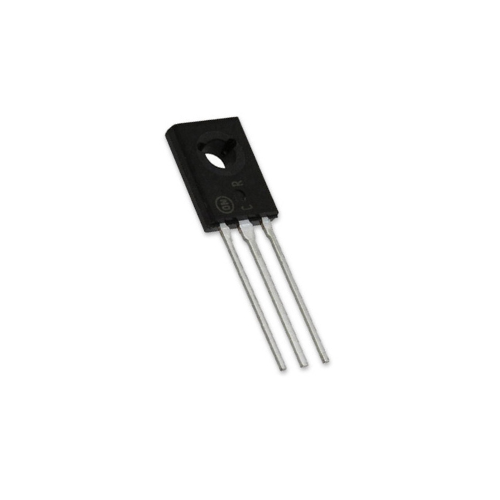

• Package: TO-126.
