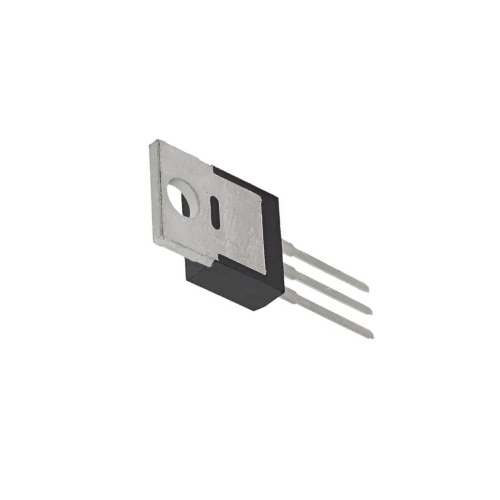

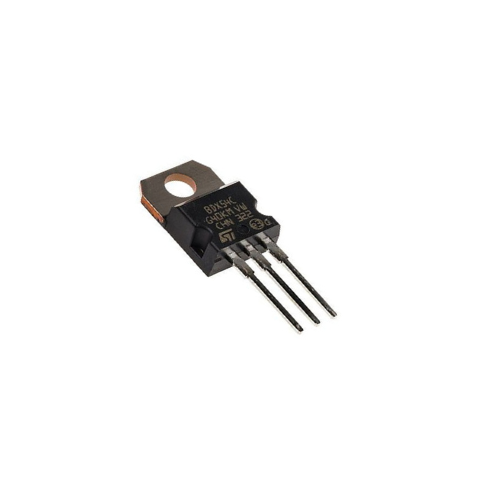

BDX54C – PNP Transistor is a PNP type power transistor. It has 8A output current It is recommended to read the datasheet before using this element.
Product Specification
| Maximum Operating Temperature | +150 Deg C |
| Maximum Power Dissipation | 60 W |
| Maximum Continuous Collector Current | 8 A |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Minimum DC Current Gain | 750 hfe |
| Maximum Collector Base Voltage | 100 V |
| Maximum Base Emitter Saturation Voltage | 2.5 V |
| Maximum Collector Emitter Saturation Voltage | 2 V |
| Maximum Collector Cut-off Current | 0.2 mA |
| Model | BDX54C |
Be the first to review “BDX54C PNP Darlington Transistor 8 A 100 V HFE:750 3-Pin TO-220”
