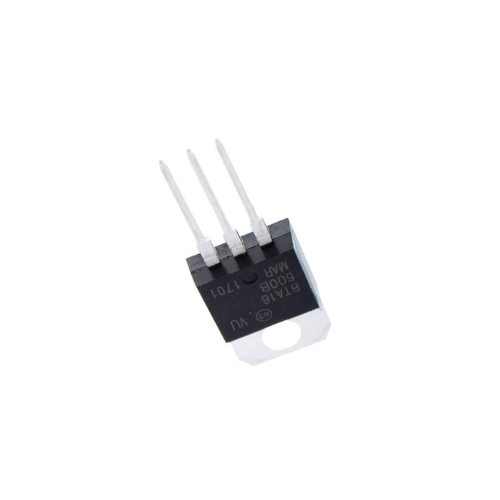

The BTA16 600V is a 3 pin Snubberless Insulated TRIAC for general purpose AC switching and can be used as ON/OFF function. The BTA series TRIAC provides voltage insulated tab by using an internal ceramic pad.
Features:-
- Nominal Average Ignition Current: 16A
- Maximum Gate Trigger Current: 100mA
- Repetitive Peak Reverse Voltage: 600V
- Nominal Suppression Current: 16A
- Maximum Door Trigger Voltage: 1.3V
- Repetitive Peak Direct Blocking Voltage 600V
- Repetitive Peak Shutdown Current 0.005mA
- Peak Ignition Voltage 1.55V
Applications:-
- Motor Drive & Control, Industrial, Lighting
- AC Light dimmers
- Strode lights
- AC motor speed control
- Noise coupling circuits
- Controlling AC loads using MCU/MPU
- Ac/DC Power control
