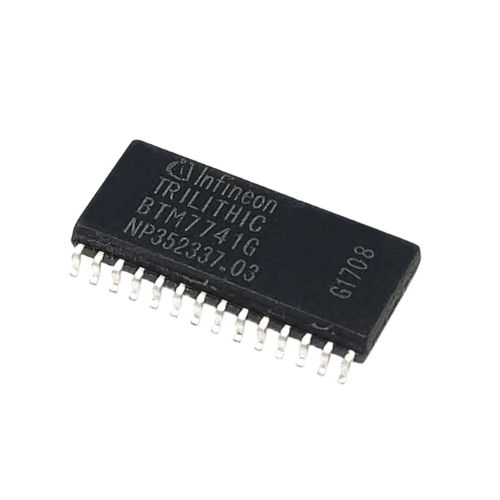

BTM7741G Bridge Driver IC SOIC-28

The BTM7741G is part of the TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separate lead frames. The sources are connected to individual pins, so the BTM7741G can be used in H-bridge- as well as in any other configuration. Both the double high-side and the two low-side switches of the BTM7741G are manufactured in SMART SIPMOS® technology which combines low RDS ON vertical DMOS power stages with CMOS circuitry for control, protection, and diagnosis.

Features:-
• Quad D-MOS switch driver.
• Free configurable as bridge or quad-switch.
• Optimized for DC motor management applications.
• Low RDS ON.
– High side: 110 mΩ typ. @ 25°C, 270 mΩ max. @ 150°C.
– Low side: 100 mΩ typ. @ 25°C, 230 mΩ max. @ 150°C.
• Maximum peak current: typ. 10 A @ 25 °C.
• Very low quiescent current: typ. 5 µA @ 25 °C.
• Small outline, enhanced power PG-DSO-package.
• Operates up to 40 V.
• PWM frequencies up to 1 kHz.
• Status flag diagnosis.
• Short-circuit-protection.
• Overtemperature shut down with hysteresis.
• Internal clamp diodes.
• Open load detection in Off-mode.
• Under-voltage detection with hysteresis.
• Green Product (RoHS compliant).
• AEC Qualified.
