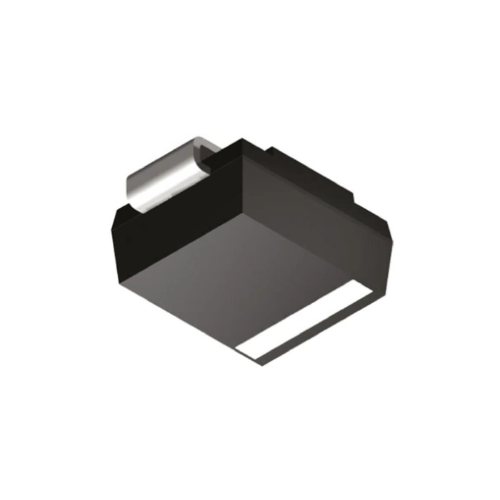

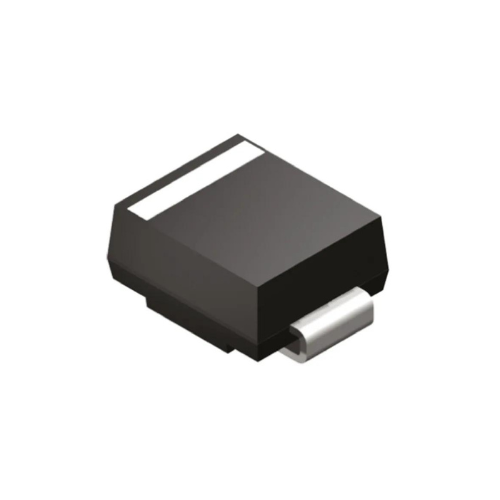

Diodes Inc Switching Diode, 1A 600V 2-Pin SMB MURS160-13-F

Features:-

• Glass Passivated Die Construction.
• Super-Fast Recovery Time For High Efficiency.
• Surge Overload Rating to 35A Peak.
• Ideally Suited for Automated Assembly.
• Lead Free Finish/RoHS Compliant.

Mechanical Data:-

• Case: SMB.
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
• Moisture Sensitivity: Level 1 per J-STD-020.
• Terminals: Solder Plated Term inal – Solderable per MIL-STD-202, Method 208.
• Lead Free Plating (Matte Tin Finish).
• Polarity: Cathode Band or Cathode Notch.
