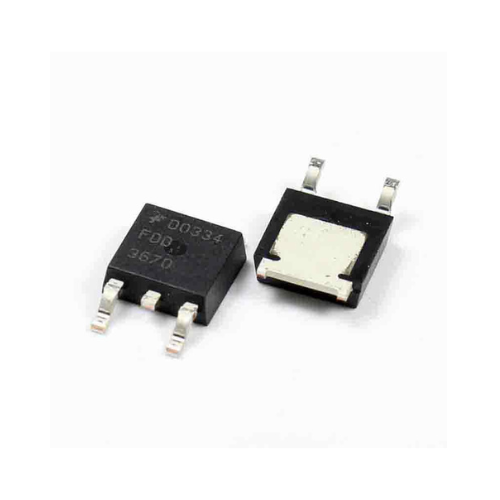

FDD3670 TO-252 MOSFET N-CH 100V 34A D-PAK

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.

Features:-

• 34 A, 100 V. RDS(ON) = 32 mW @ V GS = 10 V.

RDS(ON) = 35 mW @ V GS = 6 V .

• Low gate charge (57 nC typical).
• Fast switching speed – High-performance trench technology for extremely.
• low RDS(ON).
• High power and current handling capability.
