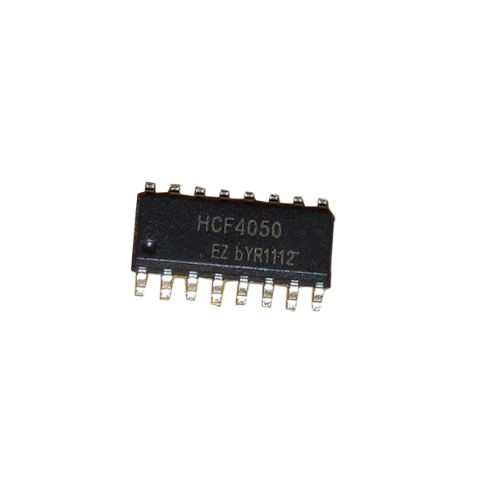

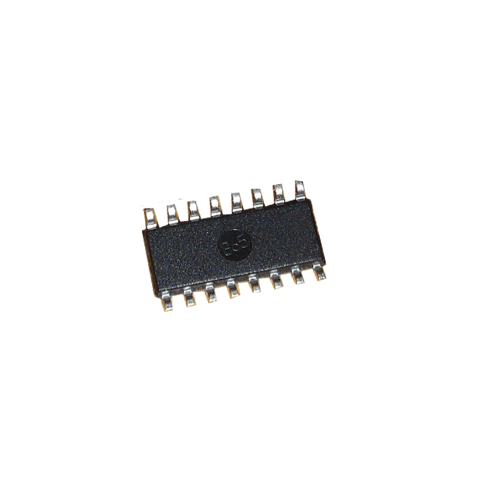

The HCF4050B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. It is an non inverting Hex Buffer/Converter and feature logic level conversions using only one supply voltage (VDD).
The input high level signal (VIH) can exceed the VDD supply voltage when these devices are used for logic level conversions. This device is intended for use as CMOS to DTL/TTL converters and can drive directly two DTL/TTL loads (VDD=5V, VOL ≤0.4V and IOL≤3.2mA.
Features:-
-
PROPAGATION DELAY TIME :tPD= 40ns (TYP.) at VDD= 10V CL= 50pF.
-
HIGH TO LOW LEVEL LOGIC CONVERSION.
-
HIGH “SINK” AND “SOURCE” CURRENT CAPABILITY.
-
QUIESCENT CURRENT SPECIFIED UP TO 20V.
-
5V, 10V AND 15V PARAMETRIC RATINGS.
- INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD =18VTA = 25°C.
-
100% TESTED FOR QUIESCENT CURRENT.
-
MEETS ALL REQUIREMENTS OF JEDEC JESD13B ” STANDARD SPECIFICATIONSFOR DESCRIPTION OF B SERIES CMOS DEVICES”.
