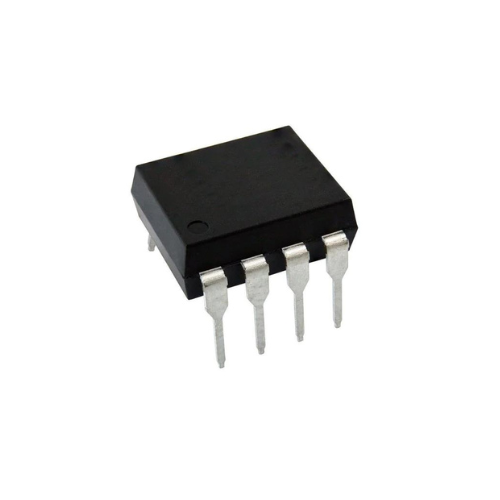

HCNW3120-300E Optocoupler Drive Push-Pull 1-CH 30V 1500V 8-Pin PDIP

The HCPL-3120 contains a GaAsP LED while the HCPL-J312 and the HCNW3120 contain an AlGaAs LED. The LED is optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. The voltage and current supplied by these optocouplers make them ideally suited for directly driving IGBTs with ratings up to 1200 V/100 A. For IGBTs with higher ratings, the HCPL-3120 series can be used to drive a discrete power stage that drives the IGBT gate. The HCNW3120 has the highest insulation voltage of VIORM=1414Vpeak in the IEC/EN/DIN EN 60747-5-5. The HCPL-J312 has an insulation voltage of VIORM = 1230Vpeak and the VIORM = 630Vpeak is also available with the HCPL-3120 (Option 060).

Features:-

• 2.5 A maximum peak output current.
•  2.0 A minimum peak output current.
•  25 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V.
•  0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive.
•  ICC = 5 mA maximum supply current.
•  Under Voltage Lock-Out protection (UVLO) with hysteresis.
•  Wide operating VCC range: 15 to 30 Volts.
•  500 ns maximum switching speeds.
•  Industrial temperature range: –40 °C to 100 °C.
•  Safety Approval:UL Recognized
  — 3750 Vrms for 1 min. for HCPL-3120/J312.
  — 5000 Vrms for 1 min. for HCNW3120 .
• CSA Approval
  IEC/EN/DIN EN 60747-5-5 Approved:
  — VIORM= 630 Vpeak for HCPL-3120 (Option 060).
  — VIORM= 1230 Vpeak for HCPL-J312.
  — VIORM= 1414 Vpeak for HCNW3120 .

Applications:-

•  IGBT/MOSFET gate drive.
•  AC/Brushless DC motor drives.
•  Industrial inverters.
•  Switch mode power supplies.
