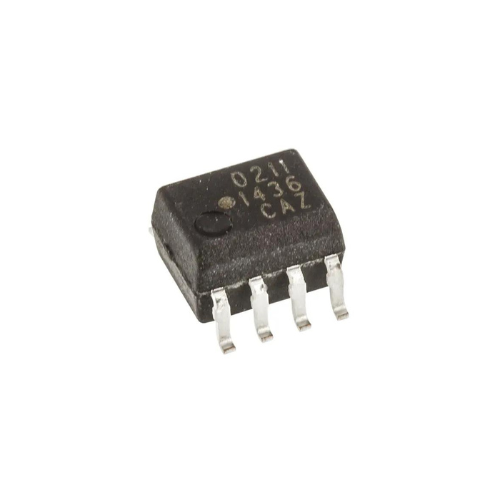

HCPL-0211-000E DC Input Schmitt Trigger Output Optocoupler Through Hole 8-Pin SOIC

The HCPL-22XX, HCPL-02XX, and HCNW22XX are optically-coupled logic gates. The HCPL-22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, eliminat ing the need for additional waveshaping.
A superior internal shield on the HCPL-2211/12, HCPL0211, HCPL-2232 and HCNW2211 guarantees common mode transient immunity of 10 kV/μs at a common mode voltage of 1000 volts.

Features:-

• 10 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/2232,HCNW2211).
•  Wide operating VCC range: 4.5 to 20 Volts.
• 300 ns propagation delay guaranteed over the full temperature range.
•  5 Mbd typical signal rate.
• Low input current (1.6 mA to 1.8 mA).
• Hysteresis.
• Totem pole output (no pullup resistor required).
• Available in 8-Pin DIP, SOIC-8, widebody packages.
• Guaranteed performance from -40°C to 85°C.
• Safety approval.
  – UL recognized -3750 V rms for 1 minute (5000 Vrms for 1 minute for HCNW22XX) per UL1577 .

– CSA approved.

– IEC/EN/DIN EN 60747-5-5 approved with VIORM =630 V peak (HCPL-2211/2212 option 060 only) and VIORM = 1414 V peak (HCNW22XX only).

• MIL-PRF-38534 hermetic version available (HCPL-52XX/62XX).

Applications:-

• Isolation of high speed logic systems.
• Computer-peripheral interfaces.
• Microprocessor system interfaces.
• Ground loop elimination.
• Pulse transformer replacement.
• High speed line receiver.
• Power control systems.
