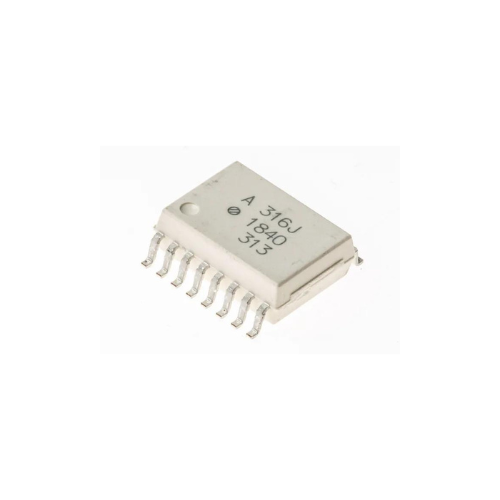

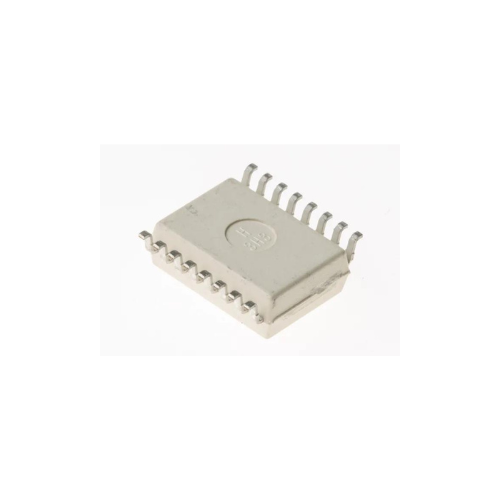

HCPL-316J-000E BiCMOS/DMOS Output Optocoupler Surface Mount 16-Pin SOIC
₹250.00
The A316J Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBT VCE fault protection compact, affordable, and easy-to-implement while satisfying worldwide safety and regulatory requirements.
10 in stock
• 2.5 A maximum peak output current
• Drive IGBTs up to IC = 150A, VCE = 1200V
• Optically isolated, FAULT status feedback
• SO-16 package
• CMOS/TTL compatible
• 500 ns max. switching speeds
• “Soft” IGBT turn-off
• Integrated fail-safe IGBT protection – Desat (VCE) detection – Under Voltage Lock-Out protection (UVLO) with hysteresis
• User configurable: inverting, noninverting, auto-reset, auto-shutdown
• Wide operating VCC range: 15 to 30 Volts
• -40°C to +100°C operating temperature range
• 15 kV/µs min. Common Mode Rejection (CMR) at VCM=1500V
• Regulatory approvals: UL, CSA, IEC/EN/DIN EN 60747- 5-5 (1414 V peak Working Voltage)
Specification:-
| Symbol | Parameter | Min | Max | Units |
| TS | Storage Temperature | -55 | 125 | °C |
| TA | Operating Temperature | -40 | 100 | |
| TJ | Output IC Junction Temperature | 125 | ||
| |Io(peak)| | Peak Output Current | 2.5 | A | |
| IFAULT | Fault Output Current | 8 | mA | |
| VCC1 | Positive Input Supply Voltage | -0.5 | 5.5 | V |
| VIN+, VIN- and VRESET | Input Pin Voltages | -0.5 | VCC1 | |
| (VCC2 – VEE) | Total Output Supply Voltage | -0.5 | 35 | |
| (VE – VEE) | Negative Output Supply Voltage | -0.5 | 15 | |
| (VCC2 – VE | Positive Output Supply Voltage | -0.5 | 35 – (VE – VEE) | |
| Vo(peak) | Gate Drive Output Voltage | -0.5 | VCC2 |
