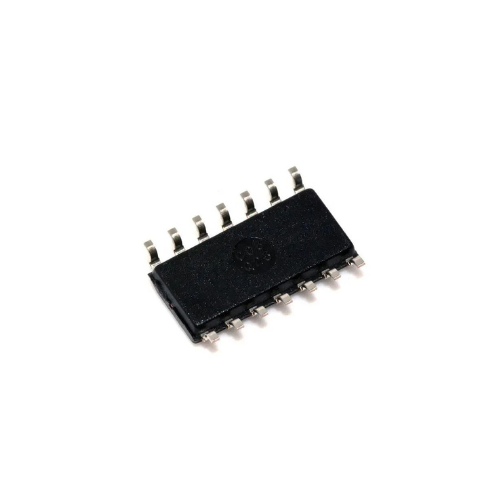

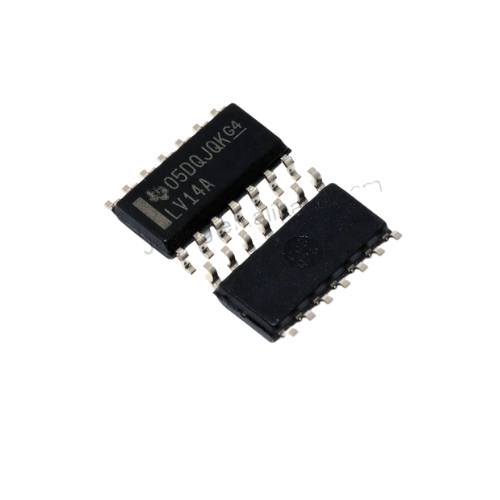

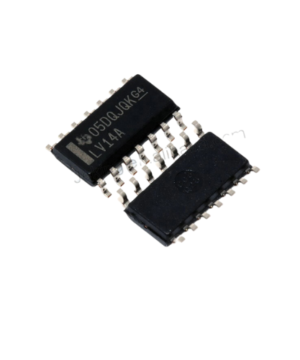

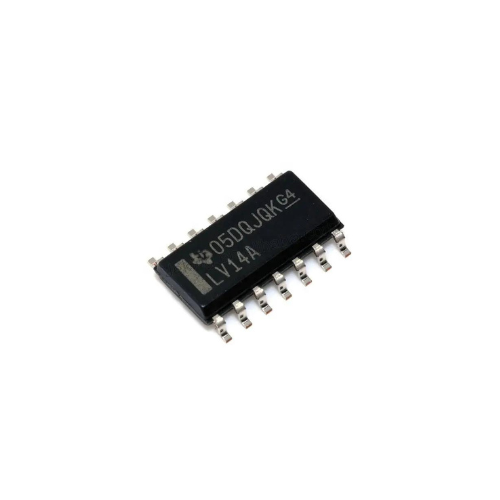

IC LV14A INVERTER SCHMITT 6CH 14SOIC SN74LV14ADR

These hex Schmitt-trigger inverters are designed for 2 V to 5.5 V VCC operation. The SN74LV14A devices contain six independent inverters. These devices perform the Boolean function Y = A.

Features :-

• VCC operation of 2 V to 5.5 V
• Max tpd of 10 ns at 5 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
> 2.3 V at VCC = 3.3 V, TA = 25°C
• Support Mixed-Mode Voltage Operation on All Ports
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 250 mA Per JESD 17

Applications : –

• Network Switches
• Wearable Health and Fitness Devices
• PDAs
• LCD TVs
• Power Infrastructure
