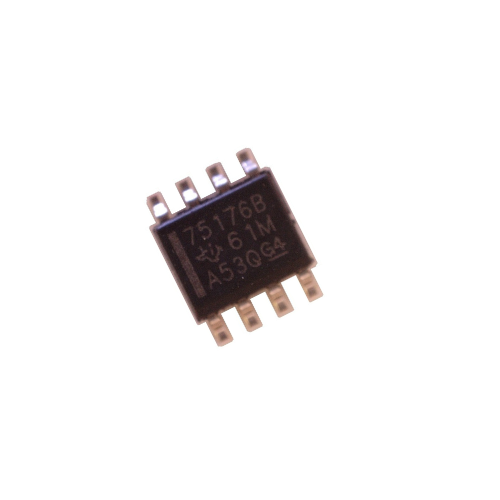

IC SN75176 SOIC-8 SMD

The SN75176A differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus-transmission lines. It is designed for balanced transmission lines and meets ANSI Standard EIA/TIA-422-B and ITU Recommendation V.11. The SN75176A combines a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active low enables, respectively, that can be externally connected together to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus whenever the driver is disabled or VCC = 0. These ports feature wide positive and negative common mode voltage ranges making the device suitable for party-line applications. The driver is designed to handle loads up to 60 mA of sink or source current. The driver features positive- and negative-current limiting and thermal shutdown for protection from line fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150°C. The receiver features a minimum input impedance of 12 kΩ, an input sensitivity of ±200 mV, and a typical input hysteresis of 50 mV. The SN75176A can be used in transmission-line applications employing the SN75172 and SN75174 quadruple differential line drivers and SN75173 and SN75175 quadruple differential line receivers. The SN75176A is characterized for operation from 0°C to 70°C.

Features:-
• Bidirectional Transceiver.
• Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and ITU Recommendations V.11.
• Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments.
• 3-State Driver and Receiver Outputs.
• Individual Driver and Receiver Enables.
• Wide Positive and Negative Input/Output Bus Voltage Ranges.
• Driver Output Capability ±60 mA Max.
• Thermal-Shutdown Protection.
• Driver Positive-Current Limiting and NegativeCurrent Limiting.
• Receiver Input Impedance 12 kΩ Min.
• Receiver Input Sensitivity ±200 mV.
• Receiver Input Hysteresis 50 mV Typ.
• Operates From Single 5-V Supply.
• Lower Power Requirements.

Applications:-
• Low Speed RS485 communication (5 Mbps or less).
• For 10 Mbps, use SN75176B.
