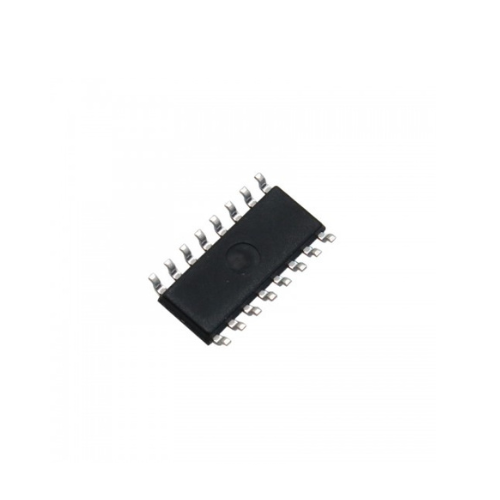

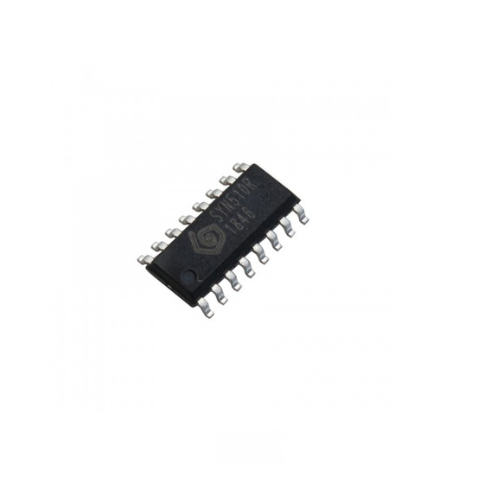

IC SYN510R with SOP-16 Package

The SYN500R is a general purpose, 3V-5.5V ASK Receiver that operates at 300-450MHz with typical sensitivity of -109dBm.

The SYN500R functions as a super-heterodyne receiver for OOK and ASK modulation up to 10kbps. The down-conversion mixer also provides image rejection. All post-detection data filtering is provided on the SYN500R. Any one-of-four filter bandwidths may be selected externally by the user in binary steps, from 1.25KHz to 10KHz. The user only needs to configure the device with a set of easily determined values, based on data rate, code modulation format, and desired duty-cycle operation. SYN510R is the SOP16 package version. SYN520R is the SOP8 package version.

Automotive Remote Keyless Entry (RKE)

Remote controls

Remote fan and light control

Garage door and gate openers

Features:
-109 dBm sensitivity, 1kbps and BER 10E-02

Frequency from 300MHz to 450MHz

Supply Voltage from 3V to 5.5V

Image Rejection Mixer Data-rate up to 10kbps (fixed-mode)

Low power, 6.0mA, 3.3V @ 433.92MHz, 3.9mA, 3.3V @315MHz, continuous on data rates to 10kbps (Manchester Encoded)

Analog RSSI Output
