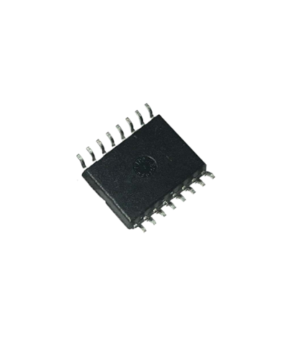

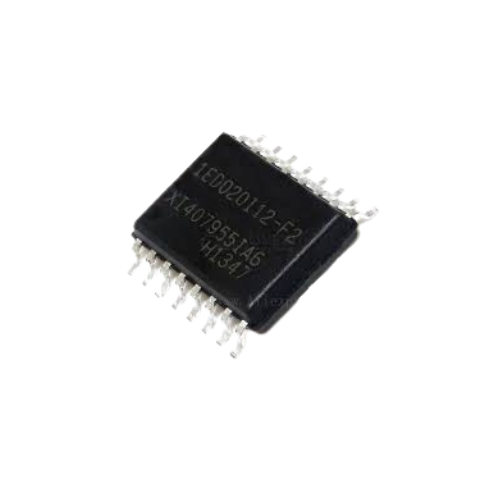

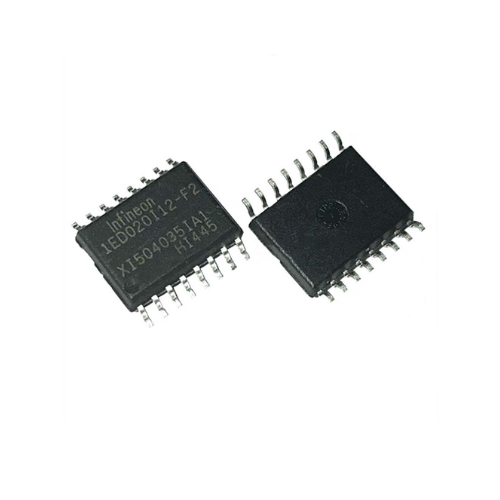

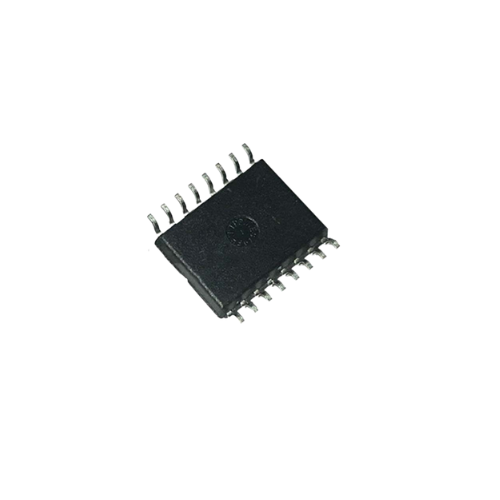

IED020I12-F2, 1ED020I12-F2 IGBT Infineon SOP-16

The 1ED020I12-F2 is a galvanic isolated single-channel IGBT driver in the PG-DSO-16-15 package that provides an output current capability of typically 2A. All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller.

Categories: IC, IC SMD

Description
Reviews (0)

The 1ED020I12-F2 is a galvanic isolated single-channel IGBT driver in the PG-DSO-16-15 package that provides an output current capability of typically 2A. All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller. The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology. The 1ED020I12-F2 provides several protection features like IGBT desaturation protection, active Miller clamping and active shut down.

Parametrics:-

Parametrics	1ED020I12-F2
Channels	1
Configuration	High-side
Input Vcc min max	4.5 V 5.5 V
Isolation Type	Galvanic isolation – Functional
Output Current (Source)	2 A
Output Current (Sink)	2 A
Turn Off Propagation Delay	165 ns
Turn On Propagation Delay	170 ns
V_BS UVLO (Off)	11 V
V_BS UVLO (On)	12 V
V_CC UVLO (Off)	3.8 V
V_CC UVLO (On)	4.1 V
Voltage Class	1200 V
