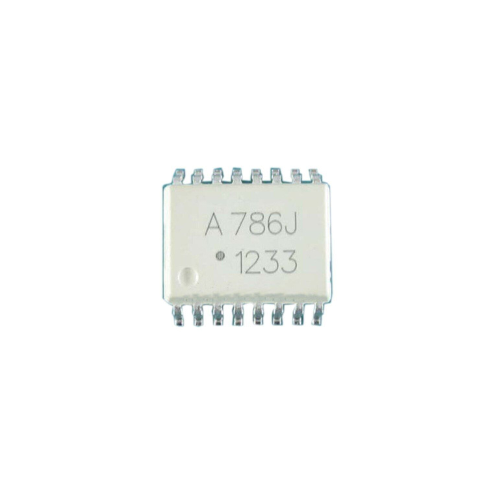

The HCPL-7860/HCPL-786J Optically Isolated Modulator and HCPL-0872 Digital Interface IC or digital filter together form an isolated programmable two-chip analog-to-digital converter. The isolated modulator allows direct measurement of motor phase currents in power inverters.
In operation, the HCPL-7860/ HCPL-786J Isolated Modulator (optocoupler with 3750 V RMS
dielectric withstand voltage rating) converts a low-bandwidth analog input into a high-speed one-bit data stream using a Sigma-Delta ( Σ− ∆ ) over-sampling modulator. This modulation provides for high noise margins and excellent immunity against isolation-mode transients. The modulator data and on-chip sampling clock are encoded and transmitted across the isolation boundary where they are recovered and decoded into separate high-speed clock and data channels.
Features:-
-
12-bit Linearity.
- 200 ns Conversion Time (Pre-Trigger Mode 2 with HCPL-0872).
-
12-bit Effective Resolution with 5μs Signal Delay (14-bit with 102μs) (with HCPL-0872).
- Fast 3 μs Over-Range Detection (with HCPL-0872 ).
-
± 200 mV Input Range with Single 5 V Supply.
-
1% Internal Reference Voltage Matching.
-
Offset Calibration (with HCPL-0872).
-
-40°C to +85°C Operating Temperature Range.
-
15 kV/ μs Isolation Transient Immunity.
-
Safety Approval: UL 1577, CSA and IEC/EN/DIN EN 60747-5-2.
Applications :-
-
Motor Phase and Rail Current Sensing.
-
Data Acquisition Systems.
-
Industrial Process Control.
-
Inverter Current Sensing.
- General Purpose Current Sensing and Monitoring.
