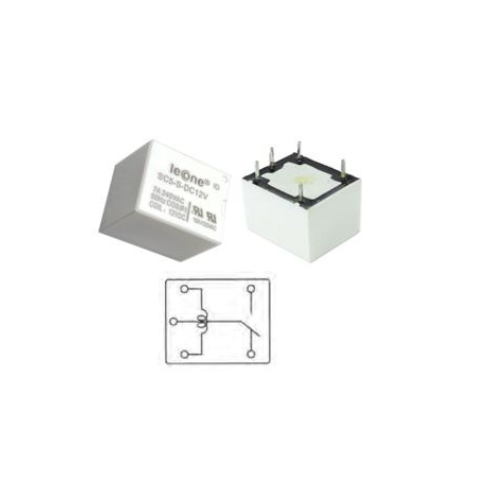

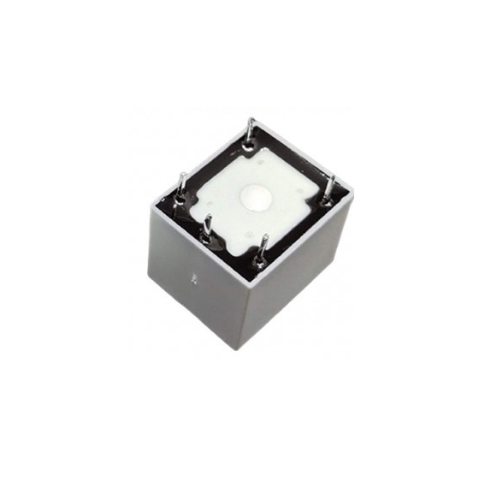

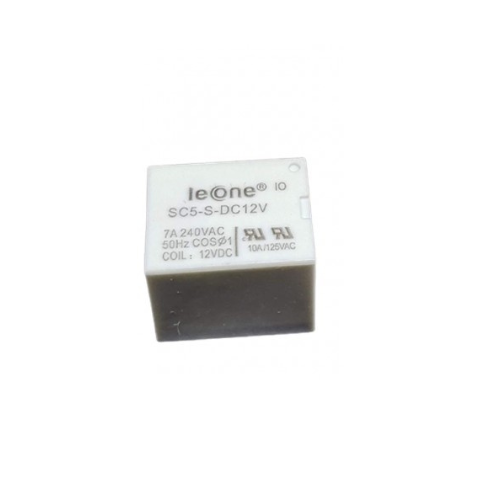

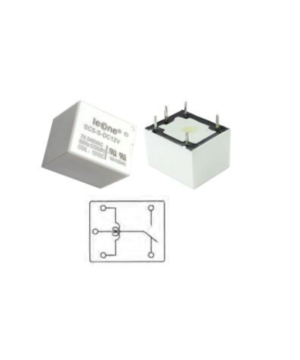

Leone SC5-S-DC12V 12 Volt Relay

This is a high quality Leone make 12 Volt sugarcube relay. SC5-S-DC12V PCB mount sugarcube relay can be used for switching High voltage 230 Volt devices and has current rating upto 7 ampere.

DNA Solutions has various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Leone SC5-S-DC12V 12 Volt Relay

• Dimension( L * W * H (mm)) : 19 * 15.5 * 15.5

• Terminal Type : PCB

• Weight : 10.5 gm

Contact Data of Leone SC5-S-DC12V 12 Volt Relay

• Contact Form : 1C

• Contact Material : Ag Alloy

• Contact Capacity : 7A @ 300VAC, 10A @ 28VDC

Coil Data of Leone SC5-S-DC12V 12 Volt Relay

• Coil Voltage ( DC) 12 Volt DC

• Coil Power Consumption 0.36 Watt

• Coil Resistance 400 ohm

General Data

• Dielectric Strength : 750 VAC @ 50 Hz / Min (Between Open Contacts)/1500 VAC @ 50 Hz / Min ( Between Coil & Contacts)

• Insulation Resistance : 100MΩ

• Electrical Life : 1 x 10

• Mechanical Life : 1 x 10

• Operating Temperature : – 40 °C ~ + 70°C
