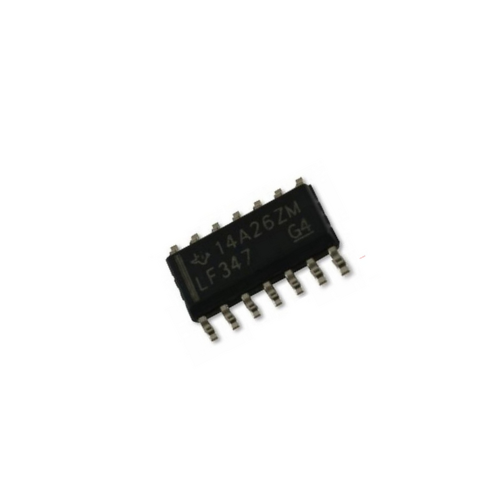

The LF347 Quad J-FET Operational Amplifiers are high-speed J–FET input quad operational amplifiers incorporating well-matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficients.
Features
- Low power consumption
- Wide common-mode (up to VCC+) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance J-FET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16v/ms (typ)
SPECIFICATIONS
| Model | LF347 | |
| Storage Temperature Range |
|
|
| Type | J-FET Operational Amplifier | |
| Package Style | SMD | |
| Supply Voltage | ±18V | |
| Power Dissipation | 680mW | |
| Operating Free-air Temperature Range | 0°C to +70°C | |
