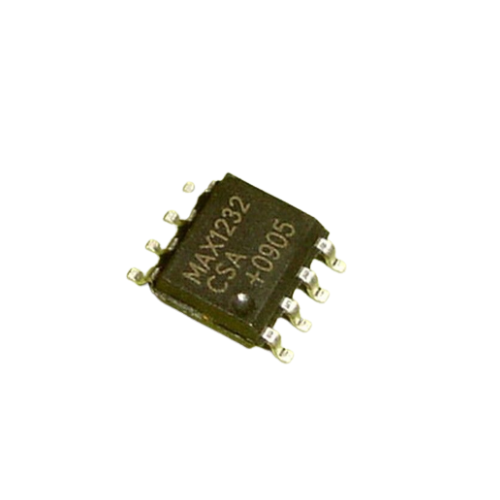

MAX1232CSA SOP-8 MAX1232 Microprocessor Monitor Chip IC

The MAX1232 microprocessor (μP) supervisory circuit provides μP housekeeping and power-supply supervision functions while consuming only 1/10th the power of the DS1232. The MAX1232 enhances circuit reliability in μP systems by monitoring the power supply, monitoring the software execution, and providing a debounced manual reset input. The MAX1232 is a plug-in upgrade of the Dallas DS1232. A reset pulse of at least 250ms duration is supplied on power-up, power-down, and low-voltage brownout conditions (5% or 10% supply tolerances can be selected digitally). Also featured is a debounced manual reset input that forces the reset outputs to their active states for a minimum of 250ms. A digitally programmable watchdog timer monitors software execution and can be programmed for timeout settings of 150ms, 600ms, or 1.2s. The MAX1232 requires no external components.

Features:-
● Consumes 1/10th the Power of the DS1232.
● Precision Voltage Monitor—Adjustable +4.5V or +4.75V.
● Power-OK/Reset Pulse Width—250ms Min.
● No External Components.
● Adjustable Watchdog Timer—150ms, 600ms, or 1.2s.
● Debounced Manual Reset Input for External Override.
● Available in 8-Pin PDIP/SO and 16-Pin Wide SO Packages.

Applications:-
● Computers.
● Controllers.
● Intelligent Instruments.
● Critical μP Power Monitoring.
