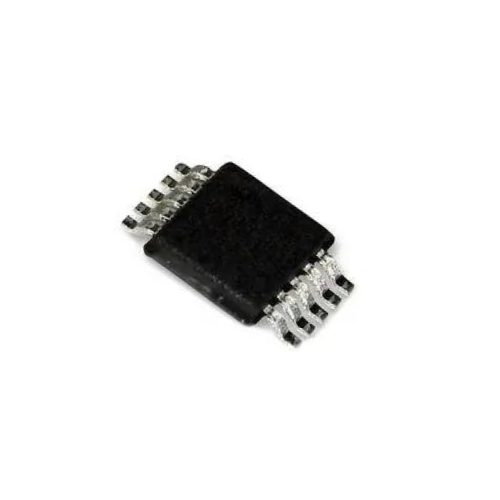

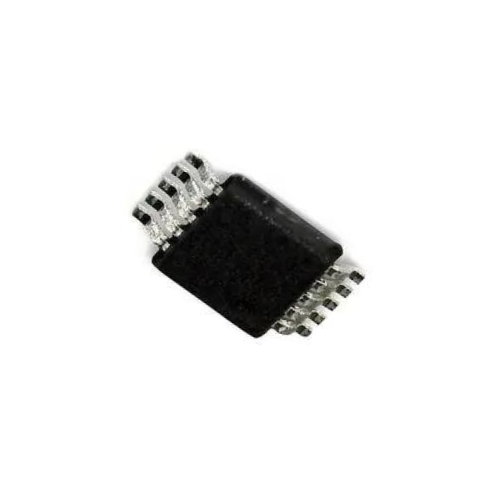

MAX1745EUB+ 36 V 330 kHz Buck Surface Mount Switching Regulator

The MAX1744/MAX1745 are step-down DC-DC controllers capable of handling up to 36V inputs. These parts use a proprietary current-limited control scheme for excellent light- and full-load efficiency, while their 330kHz (max) switching frequency permits small external components for space-critical applications. Operation to 100% duty cycle permits the lowest possible dropout voltage. The MAX1744 contains an internal feedback network that provides a pin-selectable output voltage of either 3.3V or 5V. The MAX1745 uses an external feedback network to generate an adjustable output voltage between 1.25V and 18V. The MAX1744/MAX1745 are available in a space-saving 10-pin μMAX® package.

Features:-

♦ High-Voltage Operation (Up to 36V IN)
♦ Efficiency > 90%
♦ Output Power Capability Exceeds 50W
♦ 10-Pin µMax Package
♦ Low-Dropout Voltage
♦ 100% (max) Duty Cycle
♦ 90µA Quiescent Current
♦ 4µA Shutdown Current
♦ Up to 330kHz Switching Frequency
♦ Output Voltage
– 5V or 3.3V (MAX1744)
– Adjustable 1.25V to 18V (MAX1745)
♦ Current-Limited Control Scheme
