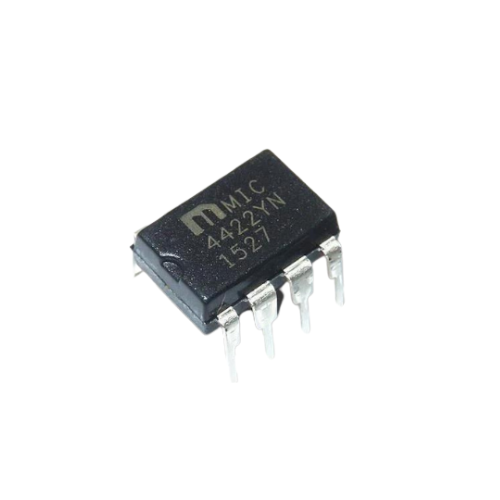

MIC4422YN MOSFET 1, 9 A, 18V 8-Pin DIP

MIC4421 and MIC4422 MOSFET drivers are rugged, efficient, and easy to use. The MIC4421 is an inverting driver, while the MIC4422 is a non-inverting driver. Both versions are capable of 9A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4421/4422 accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge. MIC4421/4422 drivers can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly costs. Modern Bipolar/CMOS/DMOS construction guarantees freedom from latch-up. The rail-to-rail swing capability of CMOS/DMOS insures adequate gate voltage to the MOSFET during power up/down sequencing. Since these devices are fabricated on a self-aligned process, they have a very low crossover current, run cool, use little power, and are easy to drive.

Features:-

•  BiCMOS/DMOS Construction.
•  Latch-Up Proof: Fully Isolated Process is Inherently  Immune to Any Latch-up.
•  Input Will Withstand Negative Swing of Up to 5V.
•  Matched Rise and Fall Times …………………………. 25ns.
•  High Peak Output Current ………………………….9A Peak.
•  Wide Operating Range ………………………… 4.5V to 18V.
•  High Capacitive Load Drive ………………………47,000pF.
•  Low Delay Time ………………………………………30ns Typ.
•  Logic High Input for Any Voltage from 2.4V to VS.
•  Low Equivalent Input Capacitance (typ) ……………..7pF.
•  Low Supply Current ………….. 450µA With Logic 1 Input.
•  Low Output Impedance …………………………………..1.5Ω.
•  Output Voltage Swing to Within 25mV of GND or VS.

Applications:-

•  Switch Mode Power Supplies.
•  Motor Controls.
•  Pulse Transformer Driver.
•  Class-D Switching Amplifiers.
•  Line Drivers.
•  Driving MOSFET or IGBT Parallel Chip Modules.
•  Local Power ON/OFF Switch.
•  Pulse Generators.
