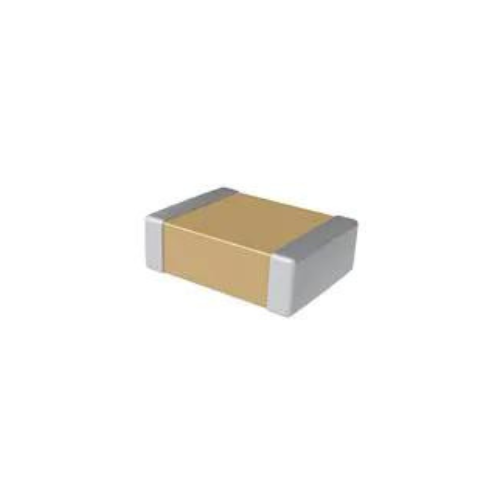

Multilayer Ceramic Capacitors MLCC – SMD/SMT 50V 470pF X7R 0805 10%

KEMET’s X7R dielectric features a 125°C maximum operating temperature and is considered temperature stable. The Electronics Components, Assemblies and Materials Association (EIA) characterizes X7R dielectric as a Class II material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage, boasting a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from −55°C to +125°C.

Benefits :-

• −55°C to +125°C operating temperature range
• Lead (Pb)-free, RoHS, and REACH Compliant
• Temperature stable dielectric
• EIA 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825, 2220,
and 2225 case sizes
• DC voltage ratings of 6.3 V, 10 V, 16 V, 25 V, 35 V, 50 V,
100 V, 200 V, and 250 V
• Capacitance offerings ranging from 10 pF to 47 μF
• Available capacitance tolerances of ±5%, ±10%, and ±20%
• Non-polar device, minimizing installation concerns
• 100% pure matte tin-plated termination finish allowing for
excellent solderability
• SnPb termination finish option available upon request
(5% Pb minimum)

Applications :-

Typical applications include decoupling, bypass, filtering and transient voltage suppression.
