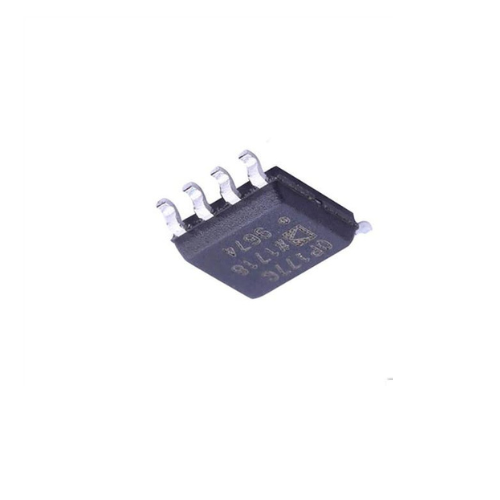

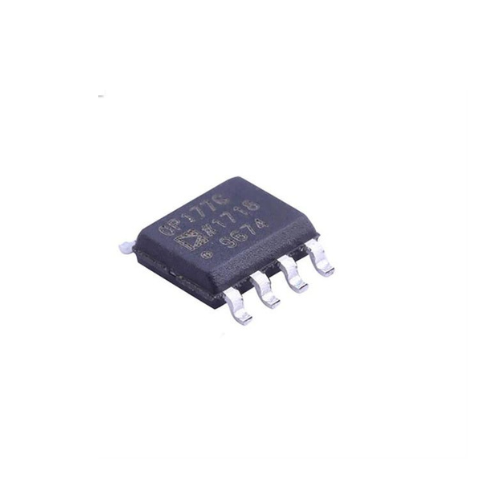

OP177GSZ-REEL Marking OP177G SOP8 Operational Amplifier

The OP177 features one of the highest precision performances of any op amp currently available. Offset voltage of the OP177 is only 25 μV maximum at room temperature. The ultralow Vos of the OP177 combines with its exceptional offset voltage drift (TCVos) of 0.1 μV/C maximum to eliminate the need for external Vos adjustment and increases system accuracy over temperature. The OP177 open-loop gain of 12 V/μV is maintained over the full +10 V output range. CMRR of 130 dB minimum, PSRR of 120 dB minimum, and maximum supply current of 2 mA are just a few examples of the excellent performance of this operational amplifier. The combination of outstanding specifications of the OP177 ensures accurate performance in high-dosed-loop gain applications. This low-noise, bipolar input op-amp is also a cost-effective alternative to chopper-stabilized amplifiers. The OP177 provides chopper-type performance without the usual problems of high noise, low-frequency chopper spikes, large physical size,limited common-mode input voltage range, and bulky external storage capacitors.The OP177 is offered in the – 40°C to +85°C extended industrial temperature ranges. This product is available in 8-lead PDIP, as well as the space saving 8-lead SOIC.



Features:-

Ultralow offset voltage

TAa= 25%C, 25 μV maximum

OutstandIng offset voltage drift 0.1 μV/°C maximum

Excellent open-loop gain and gain Linearly

12 V/μV typical

CMRR: 130 dB mlnlmum

PSRR: 115 dB minimum

Low supply current 2.0 mA maximum

Flts Industry-standard preclusion op amp sockets
