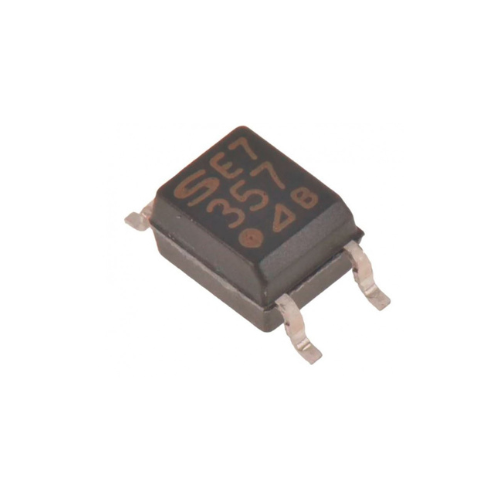

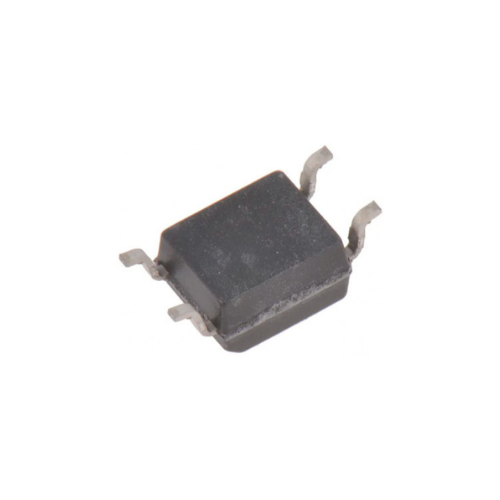

The PC357 contains an IRED optically coupled to a phototransistor. It is packaged in a 4-pin Mini-flat package. Input-output isolation voltage(rms) is 3.75kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.
Features:-
• 4-pin Mini-flat package
• Double transfer mold package (Ideal for Flow Soldering)
• High collector-emitter voltage (VCEO : 80V)
• Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V
• Several CTR ranks available
• High isolation voltage between input and output (Viso(rms) : 3.75kV) 7. RoHS directive compliant
Applications:-
• Hybrid substrates that require high density mounting
• Programmable controllers
Specification:-
| Symbol | Parameter | Rating | Units |
| IF | Forward current | 50 | mA |
| IFM | Input Peak forward current | 1 | A |
| VR | Reverse voltage | 6 | V |
| P | Power dissipation | 70 | mW |
| VCEO | Collector-emitter voltage | 80 | V |
| VECO | Emitter-collector voltage | 6 | V |
| IC | Collector current | 50 | mA |
| PC | Collector power dissipation | 150 | mW |
| Ptot | Total power dissipation | 170 | mW |
| Topr | Operating temperature | −30 to +100 | °C |
| Tstg | Storage temperature | −40 to +125 | °C |
| Viso (rms) | Isolation voltage | 3.75 | kV |
| Tsol | Soldering temperature | 260 | °C |
