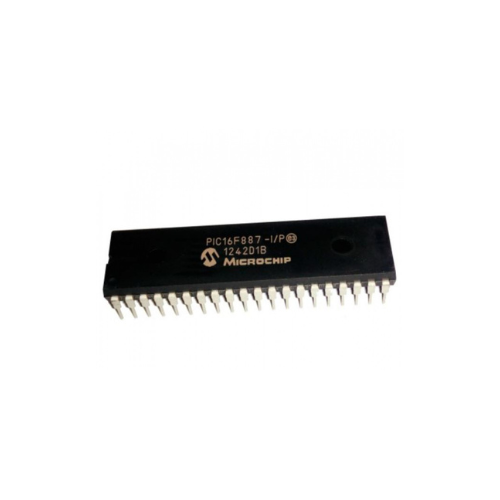

PIC16F887 Microcontroller

The PIC16F887 is a 8/40/44-Pin Flash-Based, 8-Bit CMOS Microcontroller. The following are the features:-

• 24/35 MO Pins With Individual Direction Control

– High current source/sink for direct LED drive

– Interrupt-on-Change pin

– Individually programmable weak pull-ups

– Ultra Low-power Wake-up (LJLPWU)

• Analog Comparator Module With:

– TWO analog comparators

– Programmable on-chip voltage reference (CVREF) module (% of VDD)

– Fixed Voltage Reference (0.6V)

– Comparator inputs and outputs external accessible

– SR Latch mode

– External Timerl Gate (count enable)

• AID Converter:  ID-bit resolution and 11/14 channels

• TimerO 8-bit Timer/Counter With 8-bit rammable Prescaler

Specification:-

Parameter	Value
Program Memory Type	Flash
Program Memory Size (KB)	14
CPU Speed (MIPS/DMIPS)	5
SRAM (B)	368
Temperature Range (°C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	40
Timers	2 x 8-bit, 1 x 16-bit
ADC Input	14 ch, 10-bit
Capture/Compare/PWM Peripherals	2 Input Capture, 1 CCP
Digital Communication Peripherals	1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
Data EEPROM/HEF (bytes)	256
