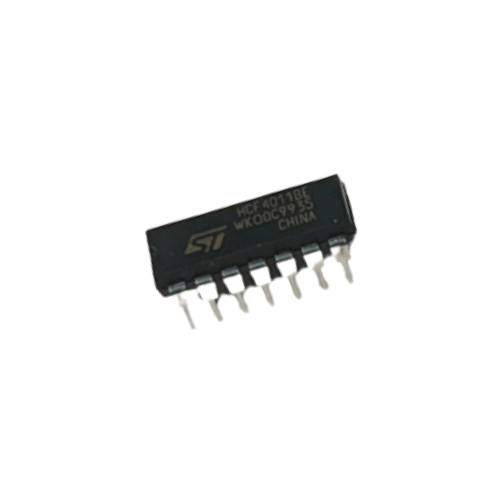

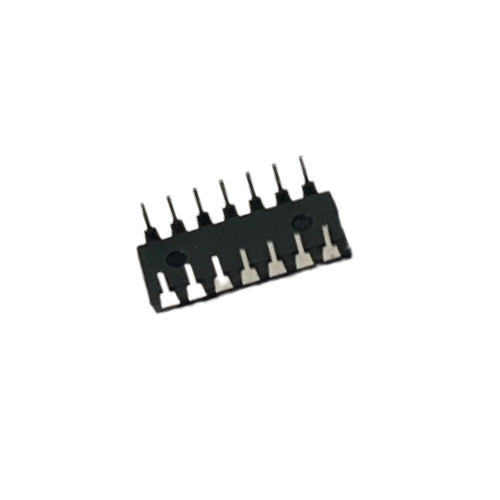

ST IC- HCF4011BE- GATE NAND QUAD 2-INP- 14-DIP

The HCF4011B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. The HCF4011B QUAD 2 INPUT NAND GATE provides the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.

Features:-

• PROPAGATION DELAY TIME tPD = 60ns (Typ.) at VDD= 10V.
• BUFFERED INPUTS AND OUTPUTS.
• STANDARDIZED SYMMETRICAL OUTPUT CHARACTERISTICS.
• QUIESCENT CURRENT SPECIFIED UP TO 20V.
• 5V, 10V AND 15V PARAMETRIC RATINGS INPUT LEAKAGE CURRENT.
• INPUT LEAKAGE CURRENT II = 100nA (MAX) AT VDD = 18V TA = 25°C.
• 100% TESTED FOR QUIESCENT CURRENT.
• MEETS ALL REQUIREMENTS OF JEDEC JESD13B ” STANDARD SPECIFICATIONS FOR DESCRIPTION OF B SERIES CMOS DEVICES”.
