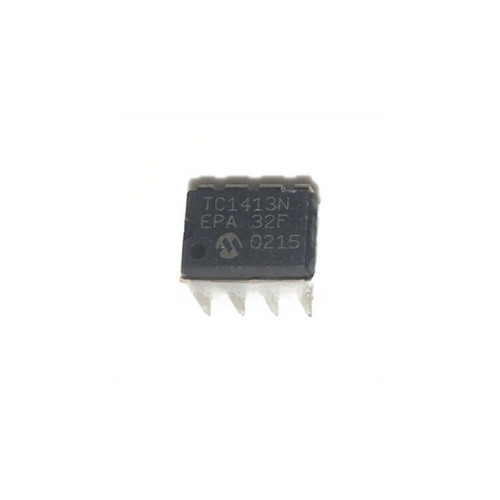

TC1413CPA TC1413NCPA TC1413 DIP New

The TC1413/1413N are 3A CMOS buffers/drivers. They will not latch up under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking of either polarity occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of current of either polarity being forced back into their output. All terminals are fully protected against up to 4 kV of electrostatic discharge. As MOSFET drivers, the TC1413/1413N can easily switch 1800pF gate capacitance in 20 ns with matched rise

and fall times, and provide low enough impedance in both the ON and the OFF states to ensure the MOSFET’s intended state will not be affected, even by large transients. The rise and fall time edges are matched to allow driving short-duration inputs with greater output accuracy.

• Latch-Up Protected: Will Withstand 500mA Reverse Current.
• Input Will Withstand Negative Inputs Up to 5V.
• ESD Protected …………………………………………….. 4kV.
• High Peak Output Current ……………………………. 3A.
• Wide Operating Range …………………….. 4.5V to 16V.
• High Capacitive Load –

  – Drive Capability ……………………… 180 pF in 20nsec
• Short Delay Time ……………………………. 35nsec Typ.
• Consistent Delay Times With Changes in Supply Voltage.
• Matched Delay Times.
• Low Supply Current –

  — With Logic “1” Input …………………………….. 50.

  — With Logic “0” Input …………………………… 150.
• Low Output Impedance ……………………………… 2.7Ω.
• Pinout Same as TC1410/11/12.
