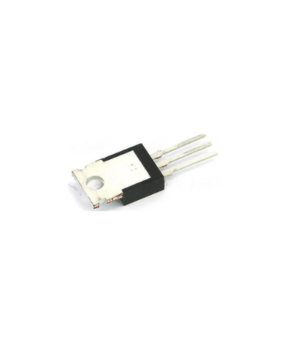

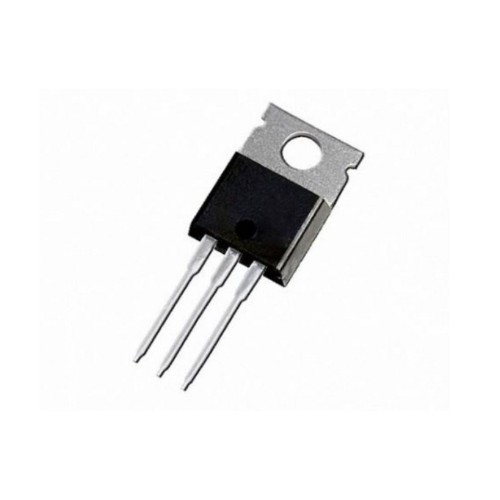

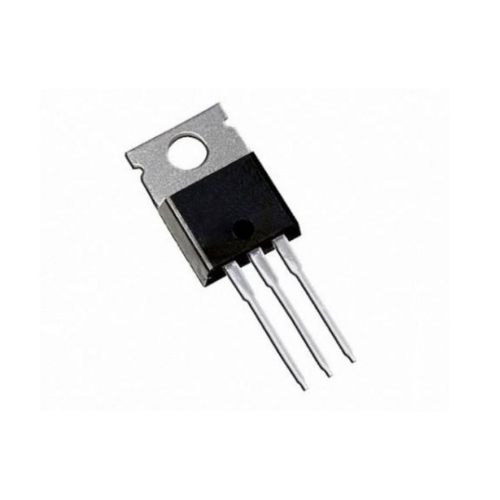

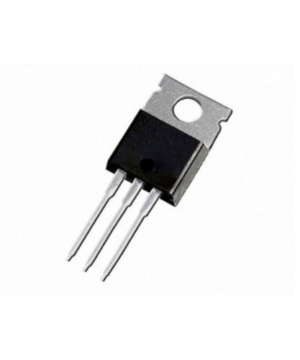

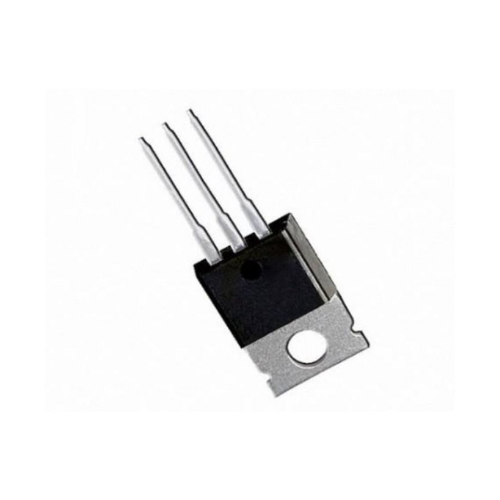

TIP122 NPN Power Darlington Transistor 100V 5A TO-220 Package

TIP122 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.

Features:-

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle

Detailed Specifications:-

Transistor Polarity	NPN
Collector−Emitter Voltage (VCEO)	100V
Collector−Base Voltage (VCBO)	100V
Continuous Collector Current (Ic)	5A
Continuous Base Current (Ib)	0.12A
Emitter Base Voltage (VEBO)	5V
Power Dissipation (Pd)	65W
Operating Temperature Range	-65 – 150°C
DC Current Gain (hFE)	1000
