The TL072, TL072A and TL072B are high speed J–FET input dual operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Features:-
-
WIDE COMMON-MODE (UP TO VCC +)AND DIFFERENTIAL VOLTAGE RANGE
-
LOW INPUT BIAS AND OFFSET CURRENT
-
LOW NOISE en= 15nV/√Hz (typ)
-
OUTPUT SHORT-CIRCUIT PROTECTION
- HIGH INPUT IMPEDANCE J–FET INPUT STAGE
-
LOW HARMONIC DISTORTION : 0.01% (typ)
-
INTERNAL FREQUENCY COMPENSATION
-
LATCH UP FREE OPERATION
- HIGH SLEW RATE : 16V/μs (typ)

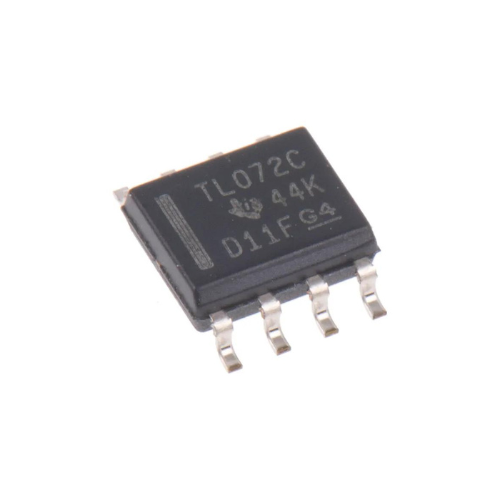

Be the first to review “TL072CD Texas Instruments Op Amp 3MHz 8-Pin SOIC”
