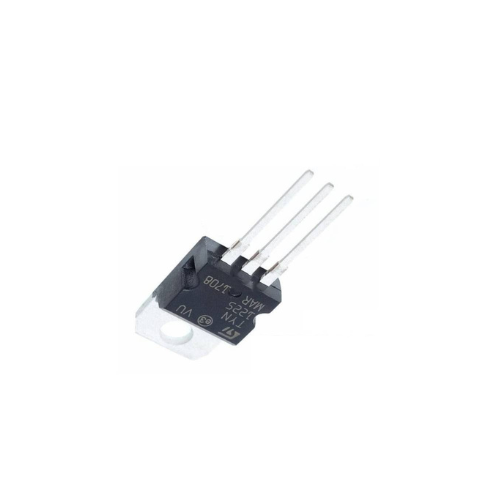

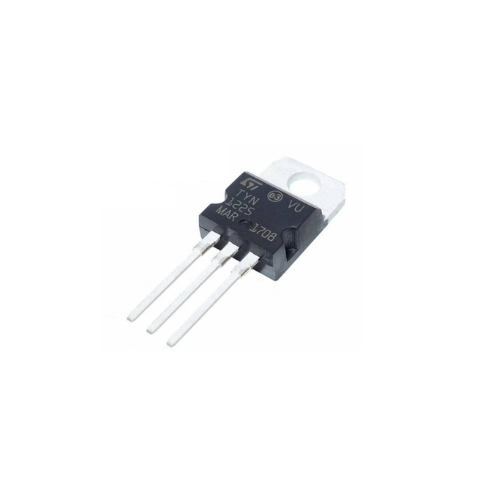

TYN1225-1200V – 25A SCR – Thyristor

These standard 25 A SCRs are suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities. TXN625RG is packaged in TO-220AB ins.

Features:-

• On-state rms current, IT(RMS) 25 A
• Repetitive peak off-state voltage, VDRM/VRRM 600 to 1200 V
• Triggering gate current, IGT 40 mA
• Insulated package TO-220AB ins
– Insulating voltage 2500 V rms
– UL1557 certified (file ref. E81734)
