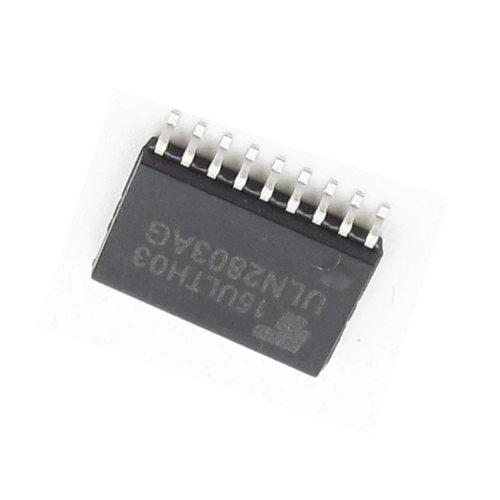

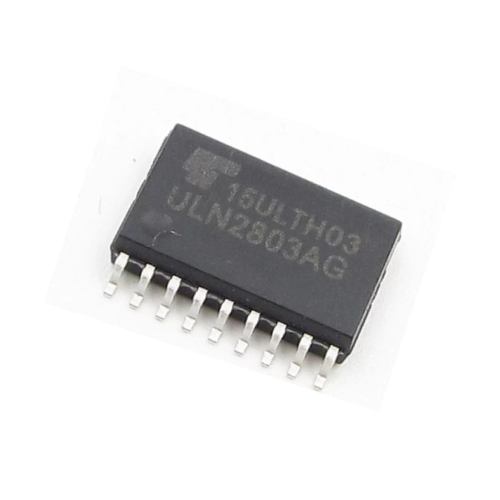

ULN2803A – SMD – 8 Darlington Transistor Arrays IC
₹20.00
The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers.
7 in stock
The ULN2803APG / AFWG Series are high−voltage, high−current darlington drivers comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications include relay, hammer, lamp and display (LED) drivers.
Features:-
- Output current (single output) 500 mA (max)
- High sustaining voltage output 50 V (min)
- Output clamp diodes
- Inputs compatible with various types of logic.
- Package Type−APG : DIP−18pin
Specification:-
| Rating | Symbol | Value | Unit |
| Output sustaining voltage | VCE (SUS) | −0.5 to 50 | V |
| Output current | IOUT | 500 | mA / ch |
| Input voltage | VIN | −0.5 to 30 | V |
| Clamp diode reverse voltage | VR | 50 | V |
| Clamp diode forward current | IF | 500 | mA |
| Power dissipation | PD | 1.47 | W |
| Operating temperature | Topr | −40 to 85 | °C |
| Storage temperature | Tstg | −55 to 150 | °C |
