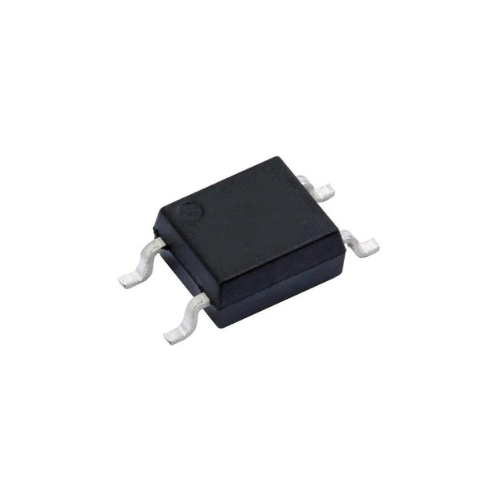

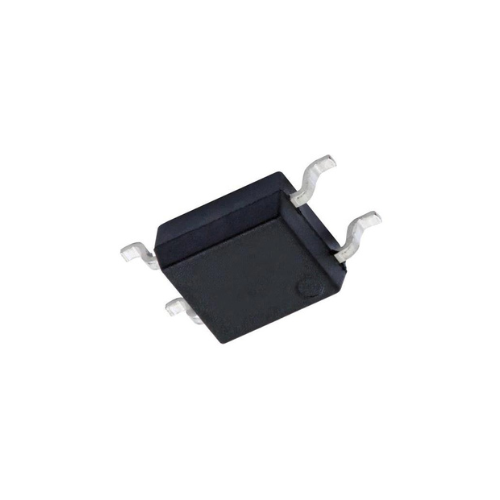

VOM618A-3X001T DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SOP

The 110 °C rated VOM618A has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch mini flat package. It features a high current transfer ratio with low input current, low coupling capacitance, and high isolation voltage. These coupling devices are designed for signal transmission between two electrically separated circuits.

FEATURES:-

•  Operating temperature from – 55 °C to + 110 °C.
•  SOP-4 mini-flat package.
•  CTR range 40 % to 600 %, IF = 1 mA.
•  Isolation test voltage, 3750 VRMS.
•  Low saturation voltage.
•  Fast switching times.
•  Low coupling capacitance.
•  End-stackable, 0.100″ (2.54 mm) spacing.

APPLICATIONS:-

• PLCs.
• Telecommunication.
• Lighting control system.
• Solar inverters.
• AC drives.

AGENCY APPROVALS:-

• UL1577, file no. E52744.
• cUL tested to CSA 22.2 bulletin 5A.
• DIN EN 60747-5-5 (VDE 0884-5), available with option 1.
• FIMKO EN 60065 and EN 60950-1.
• CQC: GB8898-2011, GB4943.1-2011.
